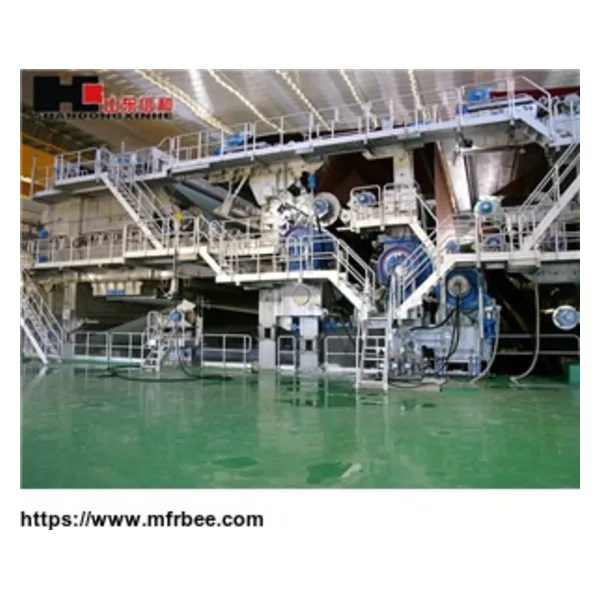

4800/350 300t/d paper board machine made in china
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
4800/350 300t/d paper board machine made in China Technical parameters: Paper product: paperboard;Basis weight: 100-300gsm;Trim width: 4800mm;Reel width: 4850mm;Wire width: 5300mm;Lip width of
headbox: 5100mm;Working speed: 350m/min;Drive speed: 400m/min;Design speed: 400m/min;Crawl speed: 25m/min;Dynamic balance speed: 600m/min;Gauge: 6200mm;
Drive way: AC frequency converter sectional drive;Main drive power: ~kw (subject to final design);Capacity: 300t/d (165gsm, 95% efficiency, 22.5 hours);Arrangement: double-layer, bottom layer
height is 6.5m, right hand or left hand machine to be confirmed;Dimension: 145500*12000*11500mm (L*W*H);Max. package weight: 30t(Φ1500 blind hole roll with bearing)
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe
- Founded Year:1998
- Address:
- Contact:Enze Yang
