Stepper Motor Lead Screw Coupling

Stepper Motor Lead Screw Coupling CNC Flexible Shaft Coupler

Jinan EagleTec CNC Machinery Co.,Ltd.

From: https://www.eaglecnctec.com

Astepper motor lead screw couplingis a device used to connect two shafts together at their ends for the purpose of transmitting power. On CNC Router, it is commonly used to connect driving and the driven parts on Z axis if x and y via rack and pinion transmission, one side withdriving motorshaft(stepper orservo), the other side with ball screw shaft. And if the cnc router machine using lead screw transmission on X Y and Z, then theflexible shaft couplercan be used on X and Y axis also.

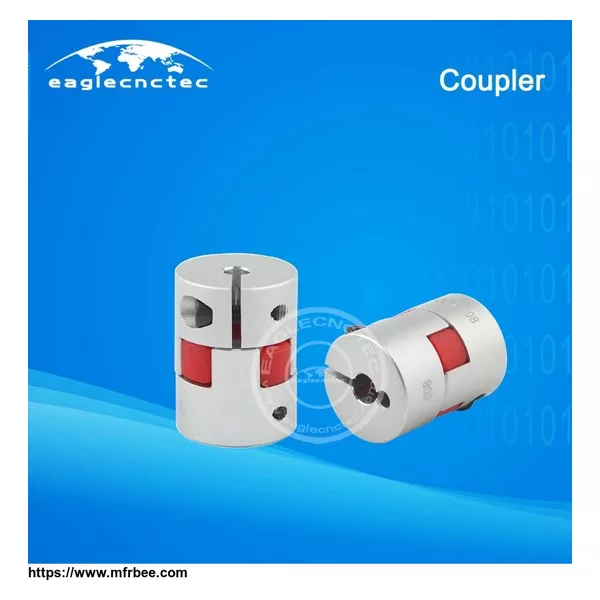

One set of cnc flexible coupling (coupler) should be consisted by the parts as picture in below
