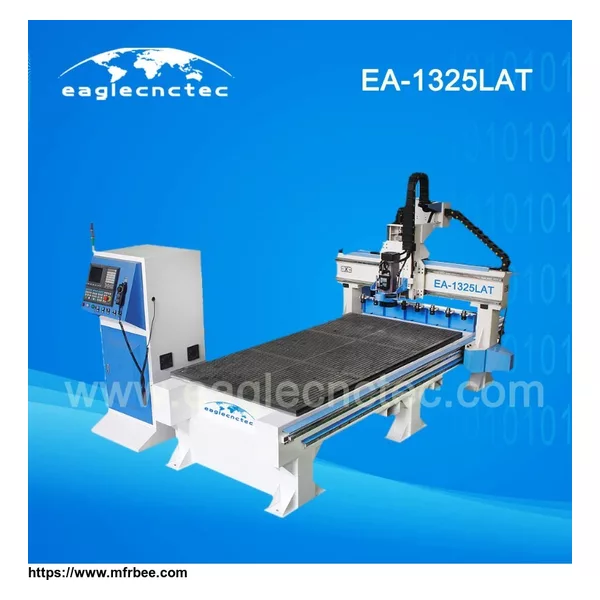

China Linear Auto Tool Changer CNC Router Machining Center
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- strong plywood box
- Delivery
- 15 Days
Specifications
China Linear Auto Tool Changer CNC Router Machining Center
Jinan EagleTec CNC Machinery Co.,Ltd.
From: https://www.eaglecnctec.com
Application
Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.
Field: Cabinet, Wood door, Wardrobe and etc.
| Working Size (X Y Z) | 1300×2500×300 mm |
| Driving Motor | Servo - Brand Delta |
| Controller | SYNTEC |
| Command | G-code |
| Max.Traveling Speed | 60,000 mm/min |
| Max.Working Speed | 45,000 mm/min |
| Work-Holding | By vac-sorb or by clamp, both available |
| Vacuum Pump | 5.5KW, air-ring, 160CBM/hour flow rate |
| X Y Transmission | Helical rack and pinion , HIWIN square linear guide way |
| Z Transmission | Taiwan TBI rolling ballscrew , HIWIN square linear guide way |
| Spindle | 9.0kw , air cooling, 0-24000 rpm variable speed (HSD from Italy) |
| Tool Magazine | Linear Style, 6 position |
| Tool Shank | ISO30, 6 pieces provided for free |
| Collet Size | ER32, available diameter of cutter φ3.175-φ18mm |
| Tool Sensor | Included |
| Working Power | AC 380V/50-60Hz, 3 Ph 4 Wire |
| Max.Power Consumption | 22KW |
| Net Weight | 1600 KGS |
| Packing | Plywood case suitable for sea shipment |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Middle East,Asia,Americas
- Founded Year:2010
- Address:
- Contact:cherry cheng
