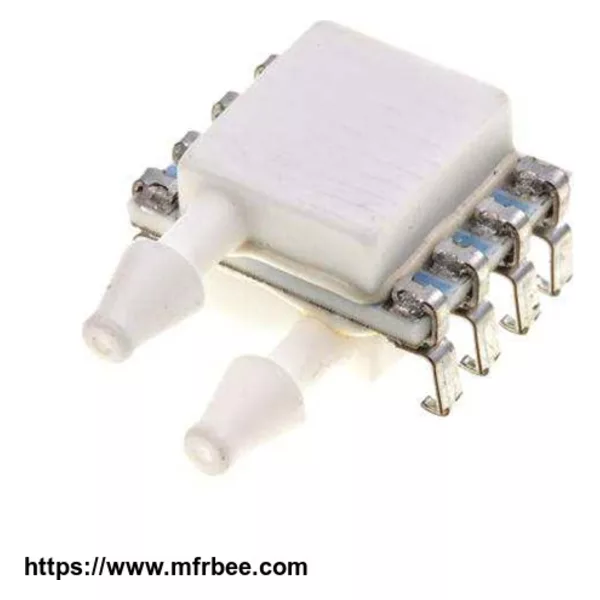

MS4515DO PCB Mounted Digital Output Pressure Sensor
Product Quick Detail
- Brand Name
- MEAS
- Minimum Order
- 1
- Place Of Origin
- United States
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
MS4515DO
SPECIFICATIONS
• PCB Mounted Digital Output Transducer
• Combination Temperature and Pressure
• Pressure Ranges from 2 to 30 inches H2O
• I2C or SPI Protocol
• Differential & Gage
• Temperature Compensated
• 3.3 or 5.0 Vdc Supply Voltage
• Low Power Option Available (standby < 1uA)
The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers.
The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates from single supply of either 3.3 or 5.0Vdc and requires a single external component for proper operation.
The rugged ceramic transducer is available in side port, top port, and manifold mount and can measure absolute or differential pressure from 2 to 30 inches H 2 O. The 1/8” barbed pressure ports mate securely with 3/32” ID tubing.
FEATURES
• Inches H2O Pressure Ranges
• PCB Mountable• Digital Output
• Barbed Pressure Ports
• Blocked Filter Detection
• Altitude and Airspeed Measurements
• Medical Instruments
• Fire Suppression System
• Panel Meter
• Air Movement/Environmental Controls
• Pneumatic Controls
ABSOLUTE MAXIMUM RATINGS
| Parameter | Conditions | Min | Max | Unit | Notes |
| Supply Voltage | TA=25 °C | 2.7 | 5.5 | V | |
| Output Current | TA=25°C | | 3 | mA | |
| Storage Temperature | | -40 | +125 | °C | |
| Humidity | TA=25°C | | 95 | %RH | Non Condensing |
| Overpressure | TA=25 °C, both Ports | Not to Exceed 300 | psi | | |
| Burst Pressure | TA=25 °C, Port 1 | | | psi | See Table 1 |
| ESD | HBM | -4 | +4 | kV | EN 61000-4-2 |
| Solder Temperature | 250°C, 5 sec max. |
ENVIRONMENTAL SPECIFICATIONS
| Parameter | Conditions |
| Mechanical Shock | Mil Spec 202F, Method 213B, Condition C, 3 Drops |
| Mechanical Vibration | Mil Spec 202F, Method 214A, Condition 1E, 1Hr Each Axis |
| Thermal Shock | 100 Cycles over Storage Temperature, 30 minute dwell |
| Life | 1 Million FS Cycles |
| MTTF | >10Yrs, 70 ºC, 1.188 Million Pressure Cycles, 120%FS Pressure |

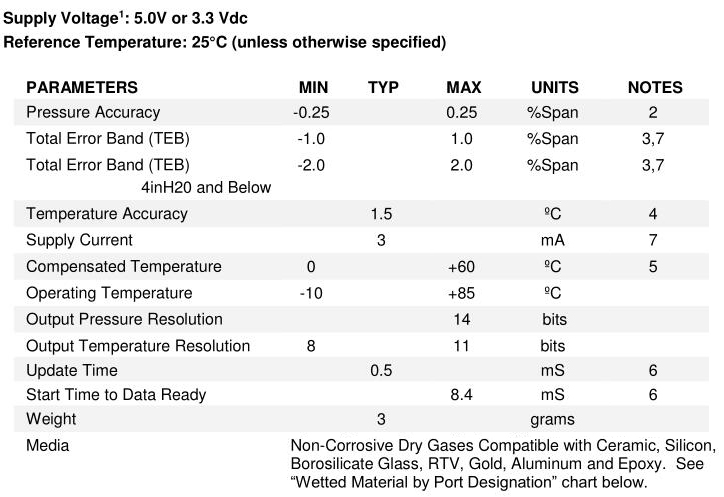

PERFORMANCE SPECIFICATIONS
