Expanded Metal
Product Quick Detail
- FOB Price
- USD $500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Expanded metal is a versatile and economical product that can meet various demands in different situations. The sheet, plate or coil be cut or slit and stretched into numbers of regular opening
diamonds on the surface is called expanded metal.
Compared with its alternatives, expanded metal is more rigid and won't ravel if part is cut off because it is slit rather than perforated. And it is more cost-effective on account of its special
expanding technic which causes none material loss in the manufacturing process. According to its different materials and wide ranges of specifications, expanded metal is used in different places.
It is an ideal product used as fencing guard, partition, stair tread and catwalk grating. Therefore we provide a wide range of expanded products, as following:
By styles:
After slit and stretched, the sheet rises and falls regularly, which we called standard expanded metal (raised or regular expanded metal). After passing through the rolling mill the flattened
expanded metal is finished.
Part of standard expanded metal being put on a blue background
EM-02: standard expanded metalPart of flattened expanded metal being put on a blue background.
EM-03: flattened expanded metal
By materials:
Many kinds of metals and alloys are suitable for expanded metal: carbon steel, stainless steel, aluminum, copper and alloy of nickel are very common materials. Then stainless expanded metal with
different chemical elements can also be divided into such several types: Types 304, 304L, 316, 316L. The specifications vary with different types slightly.
A detailed drawing of white carbon steel expanded metal.
EM-04: carbon steel expanded metalA detailed drawing of stainless expanded metal.
EM-05: stainless expanded metal
A detailed drawing of white aluminum expanded metal.
EM-06: aluminum expanded metalA detailed drawing of copper expanded metal.
EM-07: copper expanded metal
By finish types:
The usual finish methods include pre-galvanizing, hot-dip galvanizing, galfan-coating, anodizing, enameling, power coating, painting, PVC coating, etc. The most popular finish method for iron and
steel products is galvanizing. Expanded metal can be sprayed or plated into any color. It is necessary for you to specify the wanted type of coating, thickness and color of finish.
A detailed drawing of white galvanized expanded metal.
EM-08: galvanized expanded metalA detailed drawing of green PVC coated expanded metal.
EM-09: green PVC coated expanded metal
A detailed drawing of black power coated expanded metal.
EM-10: black power coated expanded metalExpanded metal in green, blue, black, reseda, orange, red, gold.
EM-11: different hole shapes and colors of expanded metal.
By hole shapes:
The process of expanded metal being produced.
EM-12: expanded metal manufacturing process
The small animation shows that the top cutting die descends and simultaneously slits and cold forms an entire row of half diamonds; and then the top die ascends and moves one half diamond right as
the base metal moves forward one strand width. With different shapes of cutting dies in machine, different shapes of openings are formed. diamond openings, hexagon openings, square openings, round
openings and fan-shaped openings.
A detailed drawing of galvanized expanded metal with diamond openings.
EM-13: expanded metal with diamond openingsA detailed drawing of galvanized expanded metal with hexagon openings.
EM-14: expanded metal with hexagon openings
A detailed drawing of galvanized expanded metal with square openings.
EM-15: expanded metal with square openingsA detailed drawing of galvanized expanded metal with diamond and hexagon openings.
EM-16: expanded metal with diamond and hexagon openings
Edge configuration:
Condition of edge refers to two types: random (open) and bond (closed). Each sheet shall have closed diamond openings on all sides of the sheet unless ordered differently.
Expanded metal with random shearing edges and bond shearing edges.
EM-17: Two end random shearing edges and two end bond shearing edges.
Manufacturing tolerances:

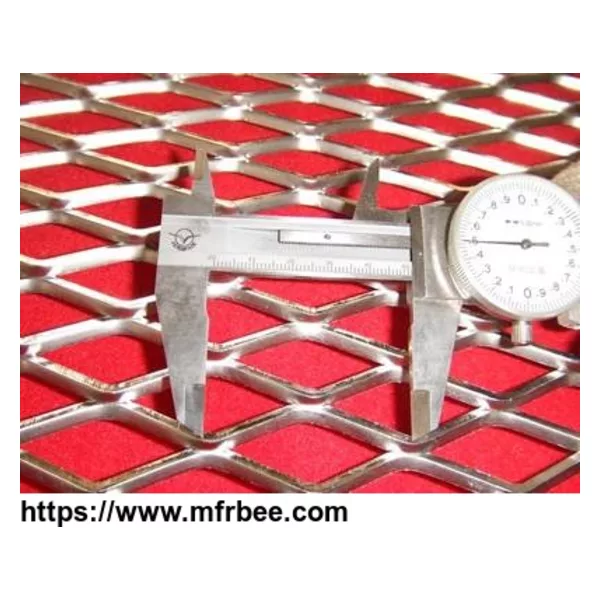

A ruler is measuring the LWD of a standard expanded metal sheet upon a red background.
EM-18: LWD will not vary from the nominal dimension more than 1/4-in. per foot (2 mm per 100 mm) of dimension.Wire diameter and thickness examination of expanded metal sheet by rulers.
EM-19: The thickness of flattened expanded metal shall not be less than 80 % of the nominal thickness of the corresponding raised expanded metal thickness.
Features:
Versatility: Expanded metal can be used to solve the many problems.
The flow of air and light: With different numbers and shapes of opening, the air and light can pass through easily according to your demands.
Variety opening shapes: Cut by different cutting dies, various openings would be offered.
Corrosion resistance: The product after Galfan coating is particularly corrosion resistant.
Strength and formability: The sheet will not unravel for its unique technic.
Durability: The combination of material and craft of expanded metal makes the panel more durable.
Economization: The product is slit and stretched, which causes no material loss.
Application:
Security fencing:
Installed around the perimeter of farm, garden, basketball court and other residential and industrial buildings to create a safer enclosure.
The product is favorable as security fencing in the highways.
Expanded metal could also used as handrail guard to protect people from danger.
To protect certain machines and animals, expanded metal fencing cage is an excellent choice.
Walkway Grating – platform and stair treads
Standard expanded metal provide safer surface for workers to walk and objects to support. What's more, it is easily to remove and install.
Ornaments:
Exterior and interior building used panels made of expanded metal bring users metallic texture. Normally, building facade, ceiling and partition wall employ expanded metal as decorations.
Expanded metal is perfect to pair with outdoor bench or picnic table.
Lampshade, by making light to reflect diffusely, diffuses or spreads out or scatters light in some manner, to give soft light.
Video, especially outdoor speaker, is extremely fragile. Therefore expanded metal made speaker cover help a lot.
Expanded steel trash basket with colorful appearance could be used in office, outside, etc.
As air and fluid filter, the expanded metal filter is able to give you what you want precisely.
Other applications:
As concrete reinforcement, the expanded metal make modern construction a possible.
As shelving to support goods.
As grill to roast delicious meat.
Trailer flooring.
Chimney caps.
Vents.
Screening.
Car grilles.
Speaker grilles.
Terminology:
For your convenience, certain knowledge of expanded metal specification is necessary. Its worth mentioning, SWD always given before LWD when ordering.
The picture indicates the certain position or of SWD, LWD, SWO, LWO, bond, etc.
EM-20:
SWD = short way of design
LWD = long way of design
SWO = short way of opening
LWO = long way of opening
bond = knuckle
This picture shows if LW parallels LWD of panel, it is standard flow expanded metal, if not, it is reverse flow type.
EM-21: Standard flow expanded metal means LW parallels LWD of panel, reverse flow expanded metal means SW parallels LWD of panel.
NOTE: Span of expanded metal grating always parallels LWD.
Table 1: Nominal weights and dimensions for standard-carbon steel expanded metal
Style Minimum thickness
(Inches)A Nominal weight in
Lbs. per 100 Sq. Ft.B Design Size
(Inches)C Opening size
(Inches) Strand size
(Inches) Overall thickness
(Inches) No. Of diamonds
Per Ft. Open area (%)
SWD LWD SWO LWO Width Thickness SWD LWD
1?4"-#20 .032 85 .250 1.00 .157 .718 .072 .036 .146 48 12 42
1?4"-#18 .042 113 .250 1.00 .146 .718 .072 .048 .151 48 12 42
1?2"-#20 .032 42 .500 1.20 .407 .938 .072 .036 .146 24 10 71
1?2"-#18 .042 69 .500 1.20 .382 .938 .088 .048 .180 24 10 65
1?2"-#16 .053 85 .500 1.20 .372 .938 .087 .060 .183 24 10 65
1?2"-#13 .083 141 .500 1.20 .337 .938 .096 .090 .212 24 10 62
3/4"-#16 .053 54 .923 2.00 .783 1.750 .101 .060 .208 13 6 78
3?4"-#13 .083 77 .923 2.00 .760 1.688 .096 .090 .212 13 6 79
3?4"-#10 .083 117 .923 2.00 .718 1.625 .144 .092 .300 13 6 69
3?4"-# 9 .127 178 .923 2.00 .675 1.562 .150 .134 .329 13 6 67
1"-#16 .053 43 1.00 2.40 .872 2.062 .087 .060 .183 12 5 83
1 1?2"-#18 .042 20 1.33 3.00 1.229 2.625 .068 .048 .144 9 4 90
1 1?2"-#16 .053 40 1.33 3.00 1.184 2.625 .108 .060 .221 9 4 84
1 1?2"-#13 .083 58 1.33 3.00 1.160 2.500 .105 .090 .228 9 4 84
1 1?2"-#10 .083 76 1.33 3.00 1.132 2.500 .138 .090 .288 9 4 79
1 1?2"-# 9 .127 119 1.33 3.00 1.087 2.375 .144 .134 .318 9 4 78
1 1?2"-# 6 .184 247 1.33 3.00 .979 2.313 .203 .198 452 9 4 69
2"-#10 .083 65 1.85 4.00 1.630 3.438 .164 .090 .335 6.5 3 82
2"-# 9 .127 88 1.85 4.00 1.603 3.375 .149 .134 .327 6.5 3 84
A The minimum thickness is absolute, not subject to minus variation.
B A variation in weight per square ft. of ±10% is permissible, based on the weight of any sheet or bundle.
C A tolerance of ±10 % is permitted in dimensions, center to center.
Table 2: Nominal weights and dimensions for flattened-carbon steel expanded metal
Style Minimum thickness
(Inches)A Nominal weight in
Lbs. per 100 Sq. Ft.B Design Size
(Inches)C Opening size
(Inches) Strand size
(Inches) Overall thickness
(Inches) No. Of diamonds
Per Ft. Open area (%)
SWD LWD SWO LWO Width Thickness SWD LWD
1?4"-#20 .026 74 .250 1.05 .092 .715 .079 .029 .029 48 11.6 37
1?4"-#18 .034 100 .250 1.05 .090 .715 .080 .038 .038 48 11.6 36
1?2"-#20 .026 37 .500 1.26 .342 1.000 .079 029 .029 24 9.5 68
1?2"-#18 .034 61 .500 1.26 .306 1.000 .097 .038 .038 24 9.6 61
1?2"-#16 .043 77 .500 1.26 .304 1.000 .098 .048 .048 24 9.5 61
1?2"-#13 .066 126 .500 1.26 .286 1.000 .107 .072 .072 24 9.5 57
3/4"-#16 .043 47 .923 2.10 .701 1.750 .111 .048 .048 13 5.7 76
3?4"-#14 .054 56 .923 2.10 .713 1.760 .105 .060 .060 13 5.7 77
3?4"-#13 .066 67 .923 2.10 .711 1.781 .106 .072 .072 13 5.7 77
3?4"-#10 .066 102 .923 2.10 .603 1.755 .160 .072 .072 13 5.7 65
3?4"-#9 .101 157 .923 2.10 .593 1.688 .165 .108 .108 13 5.7 64
1"-#16 .043 38 1.000 2.52 .804 2.250 .098 .048 .048 12 4.684 80
1 1?2"-#16 .043 35 1.330 3.15 1.092 2.750 .119 .048 .048 9 3.75 82
1 1?2"-#14 .054 43 1.330 3.15 1.098 2.750 .116 .060 .060 9 3.75 83
1 1?2"-#13 .066 51 1.330 3.15 1.098 2.750 .116 .072 .072 9 3.76 83
1 1?2"-# 9 .101 105 1.330 3.15 1.014 2.563 .158 .108 .108 9 3.75 76
A The minimum thickness is absolute, not subject to minus variation.
B A variation in weight per square ft. of ±10?% is permissible, based on the weight of any sheet or bundle.
C A tolerance of ±10?% is permitted in dimensions, center to center.
Item No.:
Item No. Is especially vital for the sake of ordering. For example:
Item No. : 1/2" #18F 4' SWD × 8' LWD
1/2" = short way of design (SWD)
#18 = 18 gauge
F = flattened
4' SW × 8' LW = size of sheet width × length
NOTE: F represents flattened, R represents raised.
Customization:
Standard specifications can be found in every specific product pages. And as an experienced manufacturer, special expanded metal with different materials, opening shapes and sizes, coatings, are
available for clients' various demands.
Accessories:
The expanded metal is usually used as fencing guards, walkways, stair treads and decorates, and the requisite accessories for clients' demands, such as posts, rails, tension bars, tie wires clips
for fencing, is all fitted as you can see in every specific product pages, but extra-chargeable.
Installation method:
The installation method for expanded metal is the same as any other metal sheet product for building.
Conventional fastenings.
Traditional welding.
Packaging and transportation:
To protect the goods, expanded metal is packed in sheet or roll into carton, crate or pallet and so on. International transportation procedures vary with the type of goods, delivery time and
destination, but to meet your requirement our service specialists are always available for your request.
Discount: Discount varies with the type and quantity.
Ordering procedures: To improve users experience, please indicate the following data: material type, flattened or standard, wire diameter, hole shape, SWD, LWD, SWO, LWO, LW, SW, strand thickness
(gauge), strand width, finish type, the thickness of coating, edge condition, weight per square ft. Accessories, packing and transportation method, etc. Therefore item No. is especially vital for
ordering.
