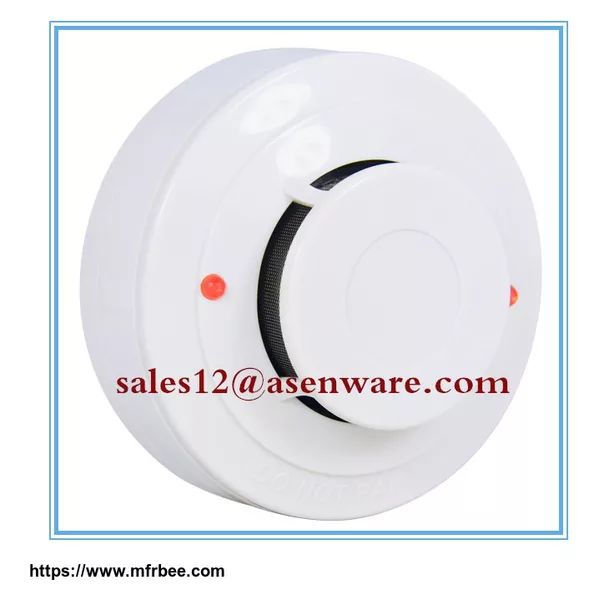

asenware 2 wires smoke detector
Product Quick Detail
- FOB Price
- USD $5.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- 10 pcs in box
- Delivery
- 3 Days
Specifications
CE approved smoke detector fire alarm
Advantage 2 Wire Conventional Smoke Detector
Fire sensor :Photoelectric smoke chamber
Mode No. AW-CSD381
Operating voltage range : 9 to 32VDC Non-polarity
Standby current less then 100uA@24VDC
Maximum Alarm current : less then 55mA@24VDC
Installation Temperature: -10 to 49 ℃
Smoke Senditivity: 1-2.5% /FT
Customization Logo, color
Standards ISO9000,EN54-7, CE,SASO
1.Compatible with all the conventional fire alarm
2.control panel
3.Unpolarized wire input
4.Wide range of operating voltages
5.Unique optical sensing chamber
6.Built in microprocessor intelligent software
7.Two LEDs blink standby, provide 360° visibility
8.Insect-resistant screening
9.Twist-on mounting base with tamper lock
10.Drift compensation and smoothing algorithms
11.Remote Indicator LED can be connected.
Product size Diameter: 99.45 mm, height: 48.2mm
Packing Carton
Carton quantity 10PCS/Carton; 10 Carton/Box
Carton/box size Carton: 20.5×23.5×11cm;
Box: 43×27×58cm
Carton/Box
weight 1.42kg/Carton;
14.2kg/Box
