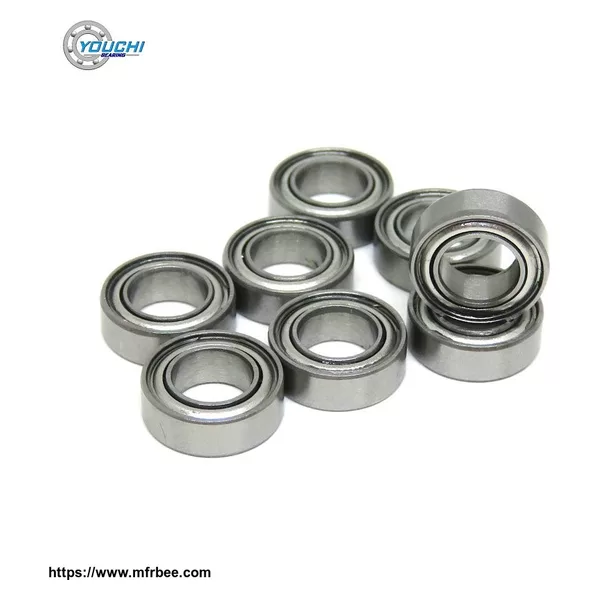

5x9x3mm SMR95zz Fishing Reel Ball bearings

Specifications:

Item: SMR95zz Worm shaft Ball Bearings

Type: Deep Groove Ball Bearings

Shields: 2 Metal Sheild

Lubrication: Self Lubricated (Grease)

ID (inner diameter)/Bore:5mm

OD (outer diameter):9mm

Width/Height/thickness:3mm

Size: 5x9x3mm

Dynamic load rating Cr:431N

Static load rating Cor:167N

Equal: SMR95-2Z & SMR95-ZZ

Weight: 0.58g

Precision Rating: P0,P6,P5,P4

Clearance: C0,C2, C3, C4, C5

Vibration level codes: V4, V3, V2, V1

Noise rank: Z1,Z2,Z3 Z4

Internal elimination code: C0 C2 C3 C4 C5

Material: Stainless steel(420 440 304 316)for you choose

Specification

Material: AISI420, AISI440C, 304, 316 Stainless Steel

Closures: OPEN/ZZ/2RS

Clearance: C0, C1, C2, C3 Available

Accuracy: P0

Grease: 30% ~ 40% MULTEMP SRL

Temperature: -40℃ to + 110℃

Certification: CE/ROHS

Package: 10pcs into plastic tube / Standard Carton outside

Pallet: Wooden or Iron pallet with plastic film against moisture.

Test Property:

Resist at 96H Salt Spray Test
