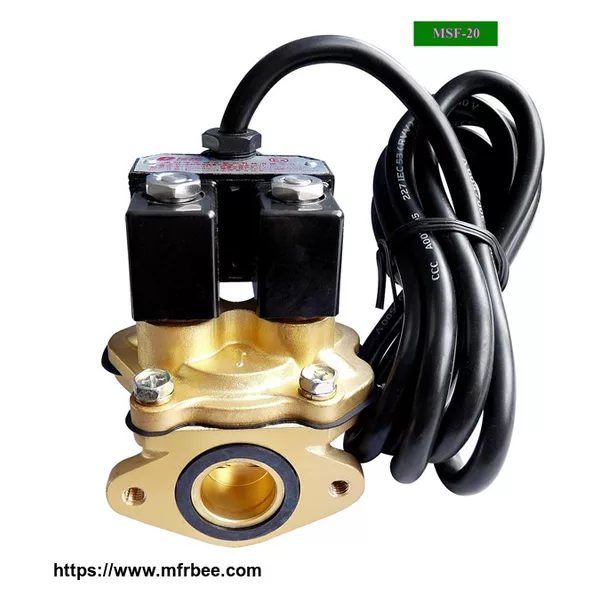

MSF-20 solenoid vavle for fuel dispenser

Built-in overlapped or parallel-connected electromagnetic valve conrol, advanced craft and reliable action.

Diaphragm of main valve has capability of anti-corrosion and resisting -40°C lower temperature.

Special stainless steel magnetic material never rusts or generates remanent magnetism.

Class F loop with good insulation.

Connect size : 4-M8 ( flange connect) bore Diameter :70mm - 4-R10

4--M6 ( small flange connect ) Bore Diameter:57mm -4-R8.5.

Type: MSF-20

Medium: Gasoline,Kerosene,Diasel

Working pressure: 0.035Moa-----0.35Mpa

Flow: 3----50L/min

Working Voltage: AC220V AC110V DC24V DC12V

Diameter: 20mm 3/4'

Type: MSF-25

Medium: Gasoline,Kerosene,Diasel

Working pressure: 0.035Moa-----0.35Mpa

Flow: 80----90L/min

Working Voltage: AC220V AC110V DC24V DC12V

Diameter: 20mm G1"
