knitted wire mesh mist eliminator

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

We supply baffled mist eliminator, vane type mist eliminator and chevron type mist removing filter. This wire netting separation device is used throughout all kinds of process industries, to remove liquid droplets from gas and/or vapor streams. The most commonly used type is vane type mist eliminator with no moving parts and requires a little (if any) or no maintenance. Supplied in a wide range of corrugated knit wire mesh materials, styles, sizes and shapes.

Designs and Installation

Mist Eliminators or demisters are made slightly oversized and are to be compressed at their rim surface when installed, to fit snugly into the vessel. Each mist eliminator of knitted wire mesh is manufactured to suit the dimensions of the vessel or housing into which it will be installed.

The ss mesh mist eliminators can be supplied with rigid support grids, which allow direct installation onto appropriate supports such as beams and rings within the vessel. Sectional installation allows ease of handling and access through vesse.

High efficient vane type mist eliminators:

Models: 60-100, 80-150, 200-400, 80-100, 90-150

Weight capacity: 128 Kg/m3

Specific surface area: 403.5m2/m3

Porosity : 0.9839

Benefits:Higher separation efficiency, increased capacity, reducing the loss of valuable chemicals, preventing (air) pollution and other features.

Application:

Knit wire mesh screen mist eliminators are used for towers, absorption tower, separation tank, gas separation device, compression absorption tanks, evaporators, separation tower, distillation towers. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.

Used as:

High efficiency wave type york 431 pad mist eliminator for filter;

Vapor-liquid mist eliminating mesh for vessels ;

Baffled Shielding metal wire mesh filter;

PP Mist Wire Mesh Eliminator Demister Pad.

Filter Media - Mist Eliminator Knitted Wire Mesh Fabrics Applied.

Material: Metal, stainless steel wire, copper wire, G.I. wire (Galvanized Iron Wire)

Specifications:

Shape: Hole, Square

Thickness: 100mm and 150mm

Length: 300mm- 6400mm

Width: 700-4600mm

Advantage:

Increasing throughput

Downsizing new vessels

Improving product purity

Cutting operating costs

Reducing environmental pollution

Reducing downstream corrosion

Increasing recovery of valuable liquids

Country: China (Mainland)
Business Type: Manufacturer
Market:Asia
Founded Year:2007
Address:Victory Road No. 11, Taocheng area, Hebei, china
Contact:Rosanna Smith

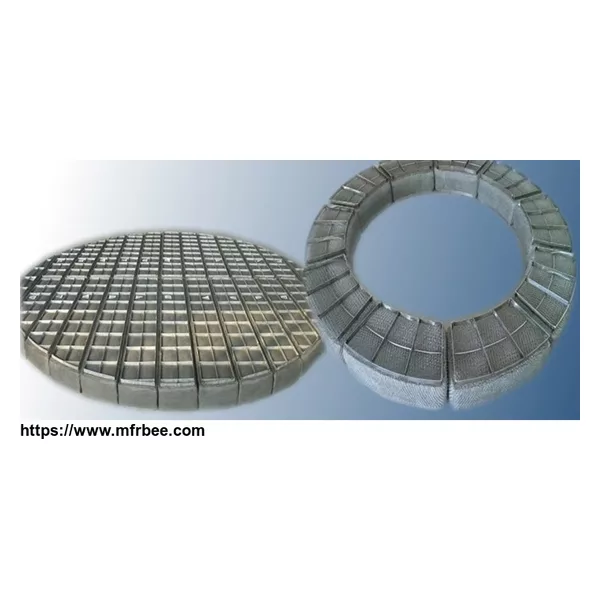

knitted wire mesh mist eliminator

more images of knitted wire mesh mist eliminator
