Hog wire fence with smooth galvanized finish surface (no sharp burrs) and narrower vertical spacing at the bottom and wider spacing at the top, is perfect material for livestock pen, such as for pig, goat, sheep or other large animals. Rigid welded hog wire panels give your livestock a clean and safe enclosure. Further more, this type feedlot wire panel won't break down or collapse when cattle, pigs, sheep or livestock run into or rub against it.

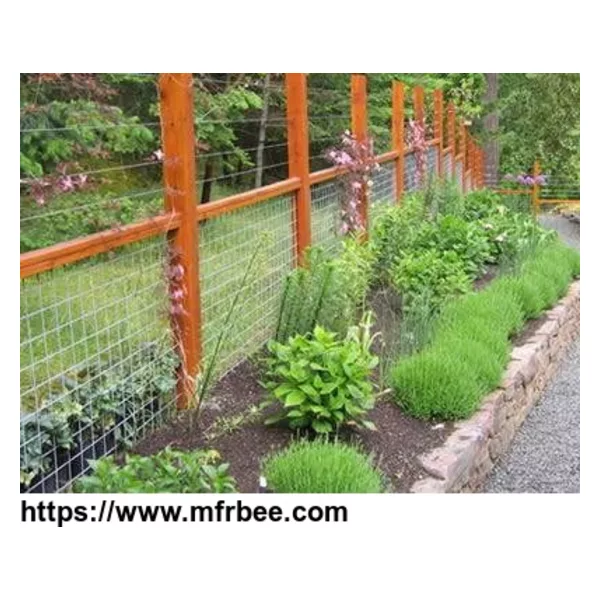

Welded wire hog panels may also be used for landscape, such as, with wood/steel frame for pool fence, railing fill mesh, garden fence, or acts as a trellis for climbing plants grown. The smaller mesh at bottom can keep your neighbor dog out.
Welded hog wire panel fence description:
Item | Wire Gauge | Length (ft.) | Height (in.) | No. Of Vertical Wire | No. Of Horizontal wire | Vertical Wire Spacing (in.) | Horizontal wire Spacing (in.) | Panels per Bundle (pcs) | Application |
---|---|---|---|---|---|---|---|---|---|
HGP01 | 1/4" rod | 16 | 34 | 25 | 11 | 8 | 4×2", 2×3", 1×4", 2×5", 1×6" | 50 | for livestock or landscape |
HGP02 | 4 gauge | 16 | 34 | 25 | 11 | 8 | 4×2", 2×3", 1×4", 2×5", 1×6" | 50 | for livestock or landscape |
HGP03 | 1/4" rod | 16 | 34 | 25 | 11 | 8 | 5×2", 3×4", 2×6" | 50 | for livestock or landscape |
HGP04 | 4 gauge | 16 | 34 | 25 | 11 | 8 | 5×2", 3×4", 2×6" | 50 | for livestock or landscape |
HGP05 | 1/4" rod | 16 | 48 | 49 | 13 | 4 | 4 | 50 | for landscape |
HGP06 | 4 gauge | 16 | 48 | 49 | 13 | 4 | 4 | 50 | for landscape |
Note: Horizontal wire spacing is from bottom to top. Other specifications are available on special order.
Welded Hog wire fence features:
Hog wire fence application: Hog wire fence panels are perfect for pig pens, corrals, feedlots, arenas and other use as the following:
