Chain Link Razor Wire Fence

FOB Price
USD $500.00 / Piece
Place Of Origin
china
Minimum Order
500
Packaging
N/A
Delivery
15 Days

Chain Link Fencing is a perfect choice for a secure, boundary fences for playground, highway, prisons and military high level security jobs. May add concertina razor coil and barbed wire on chain link mesh for higher safety.


CLRF-01: Chain link mesh for sports fence.

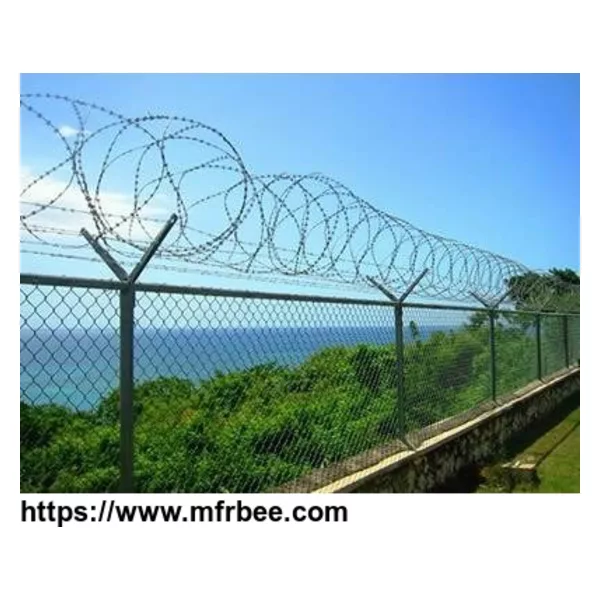

CLRF-02: Chain link razor wire fence for high security protection on the beach.

Our chain link fence types

  • According to different materials:
    • Galvanized chain link fence
    • PVC chain link fence
    • Vinyl chain link fence
    • Stainless steel chain link fence
  • According to different mesh size:
    • Common chain link fence (above 1" up to 4").
    • Mini mesh chain link fence for high security. (with 1/4", 3/8", 1/2", 5/8", 3/4" or 1" mesh opening).

Chain link fence Specifications

  • Material: galvanized and PVC coated wire, Vinyl coated wire, hot-dipped galvanized iron wire or stainless steel wire.
  • Tensile strength: 340 to 480 N/mm2.
  • Galvanized thickness: 60-90 g/m2.
  • PVC or vinyl wire colors: black, brown and green. Other RAL color is available.
  • Wire diameter: 2.0 - 5.0 mm.
  • Wire diameter tolerance: ±0.12 mm.
  • Mesh opening: 30-100 mm. (1/4", 3/8", 1/2", 5/8", 3/4" or 1" mini mesh also offered for high security).
  • Mesh shape: diamond shape, square shape.
  • Fencing height: 1.0-3.5 m.
  • Edge types: horizontal, knuckled or twisted. Knuckle edge can not hurt people, while twist edge adds security.
  • Roll length: 10-50 m.
  • Accessories: main post, beam post, post cap, rails, rail end, clamps, bolt, washer and nuts, etc.
Chain link fence commonly used specifications
Mesh opening Wire gauge Wire diameter Weight
inch mm (SWG) (mm) (kg/m2)
1/2" 12.7 14# 2.2 4.4
3/4" 19.05 12# 2.8 6
3/4" 19.05 14# 2.2 3.3
3/4" 19.05 16# 1.63 1.9
1" 25.4 12# 2.8 4
1" 25.4 14# 2.2 2.4
1" 25.4 16# 1.83 1.4
1 1/4" 31.75 12# 2.8 3.2
1 1/4" 31.75 14# 2.2 1.92
1 1/2" 38.1 10# 3.25 4.1
1 1/2" 38.1 12# 2.8 2.7
1 1/2" 38.1 14# 2.2 1.6
2" 50.8 8# 4.06 4.6
2" 50.8 10# 3.25 3.1
2" 50.8 11# 2.95 2.5
2" 50.8 12# 2.8 2

Note:

  1. For higher security grade, concertina razor coil and barbed wire may plus on the chain link fence topping.
  2. Heavy gauge pipe end posts, line posts, Y posts and top rails support the heavy weight of chain link fabric razor barbed wire fence.
  3. To Erected perfect defense fencing system, framework, chain link gates (walk gate, single gate, double swing gate, cantilever gate and roll gate) and all accessories available.
  4. Chain link mesh fence and poles, razor barbed wires are supplied separately, and flexibility in installation according to the varies area.

Chain link fence application

  • Playground, yard and garden fencing barrier, tennis courts, sports fields fencing.
  • Super highway, railway, airport, port, residence.
  • Making into temporary fence for crowd control in event.
  • Mini mesh chain link fence for prisons and military high security jobs.
  • Chain link mesh with barbed wire coils on topping for mobile phone base station fencing.
  • Old trees protection fencing.
  • Materials divider in workshop, warehouse and construction site.
  • Poultry fencing for breeding animals, big dog cage, indoor or outdoor dog run pen.
  • Thin wire chain link fence for plastering mesh.

CLRF-03: Vinyl chain link fence for old tree protection, harmony with the trunk of old tree.

CLRF-04: Chain link mini mesh fencing with tightly woven anti-cutting and anti-climbing.

How to choose a perfect chain link fence for my jobs?

  • 3.5-4.5 mm wire chain link mesh for 30+ years serves.
  • Vinyl coated and PVC coated chain link mesh have a more attractive appearance, and anti-rust, anti-corrosion, anti-acid and anti-alkali, perfect for near the sea, oil field, or in the acid factory area.
  • For animals breeding, galvanized or stainless steel may be your choice. They are chewing proof. And stainless steel material is harmless to your lovely animals.
  • For chicken poultry, chain link wire dia. 2.5mm.
  • For garden and tennis courts, PVC or vinyl coated chain link wire dia. 3.5mm.
  • For road fence, PVC chain link wire dia. 3.8mm.
  • For sea side and oil field, vinyl/PVC coated chain link wire dia. 5.0mm.
  • Country: China (Mainland)
  • Business Type: Trading Company
  • Market:Americas
  • Founded Year:1996
  • Address:East Industrial Zone, Anping, Hebei, China.
  • Contact:yan feng
