3D Welded Security Fence

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

3D Welded Security Fence Upgrades Your Building/Area Look

3D curved security welded anti-climbing and anti-cutting fence barrier, is a most secure and most attractive fencing solutions. The security fencing with bends will give your building and area a long lasting secure perimeter protection with attractive appearance. Similar to 358 mesh fence, 3D curved fencing is commonly used in prisons, military sites, airports, and other place. This type security welded fencing can be installed on flat area or slope. And it is popular used in USA, United Kingdom, Australia, India, South Africa, Canada, Malaysia, Ireland, United Arab Emirates, Singapore, and so on.

3D curved security welded fence panels width is 2,515 m, and fencing height can be from 2.0 m to 6.0 m. Generally, 3.60 m height security fence is used in schools, parks, leisure and recreational areas, 5.20/6.0 m height fence widely used in prison and military establishments.

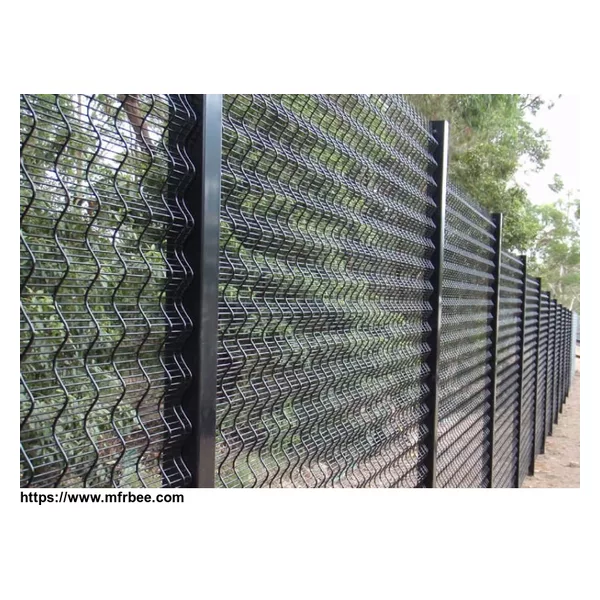

Black polyester coated curved security fencing separates old trees from the road.

"V" bends increase the strength of the security welded fencing with attractive appearance.

3D security fence features

Anti-climb, anti-cut and high visible.

High strength.

Most secure and most attractive.

Durable coating last over 10 years.

Standard panels and posts are kept in stock.

3D curved security welded fence specification

Welded panel size

Mesh pattern: 76.2 mm × 12.7 mm resistance welded well at each intersection.

Wire diameter: 4.0 mm horizontal wire and 4.5 mm vertical Wire.

Weld strength: range 540-690 N/m2

Surface treatment: Galfan coated before welded, then polyester coated green RAL 6005, or black RAL 9005.

Fence posts

Material: high grade steel for maximum strength and rigidity.

Post section: 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.

Post plate thickness: 3.0/4.0/5.0 mm.

Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron).

Colors: Green RAL 6005, or Black RAL 9005.

Post cap: metal caps or plastic cap.

3D curved security welded fence height and post

Fence height Panel size (height × width) Fence Post (height × size × thick )

2.0 m 2007 mm × 2515 mm 2700 mm × 80 × 80 × 2.5 mm

2.4 m 2400 mm × 2515 mm 3100 mm × 80 × 80 × 2.5 mm

3.0 m 2997 mm × 2515 mm 3800 mm × 80 × 80 × 2.5 mm

3.6 m 3607 mm × 2515 mm 4500 mm × 100 × 100 × 3.0 mm

4.2 m 4204 mm × 2515 mm 5200 mm × 100 × 100 × 4.0 mm

4.5 m 4496 mm × 2515 mm 5500 mm × 100 × 100 × 5.0 mm

5.2 m 5207 mm × 2515 mm 6200 mm × 120 × 120 × 5.0 mm

6.0 m 6000 mm × 2515 mm 6900 mm × 120 × 120 × 5.0 mm

Packaging

Security welded fence panel wrapped with plastic film in canton box and then put on metal/wooden pallet.

Fence post wrapped with plastic strip and in bulk or on metal/wooden pallet.

The welded mesh fence accessory in carton box.

Application:

3D curved security welded fence with maximum security often used for an anti-climb & anti-cut through barrier in the following area:

Fencing in prisons, military sites, and airports.

Warehouses, power plants, laboratories.

Industrial and commercial properties.

Secure hospitals, schools.

Parks, leisure and recreational areas.
