Bar Straightening Machine

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Bar Straightening Machine for Straightening Steel Bar

Bar straightening machine is used to straighten various steel bars. We also offer bar straightening and cutting machine, automatic CNC hydraulic rebar straightening machine, automatic CNC rebar straightening and cutting machine, scrap steel bar straightener, CNC hydraulic bar straightening cutting machine. Rebar straightening cutting machine is used to straightening wire or rebar, and then cut it into the needed length. These machines can save labors, increase the output, and straighten steel bar with high efficiency. Four wheels on the bottom of machine can make machine move to anywhere easily. The machine is usually used in building sites, rebar processing factory, rolling mills, cement precast factory, cement factory.

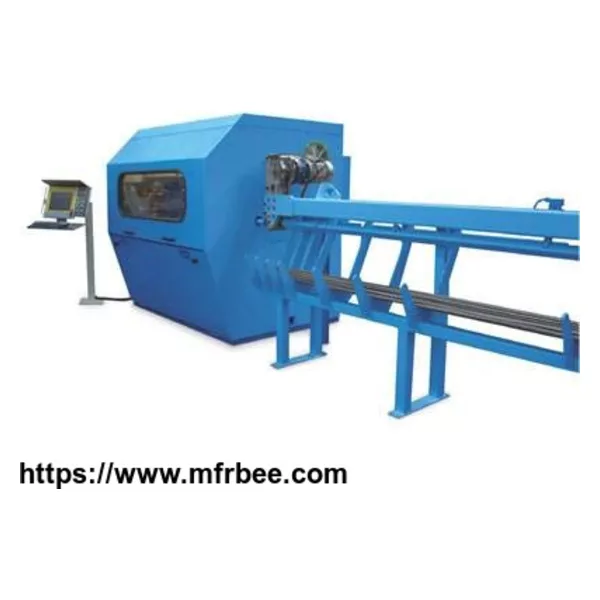

A blue bar straightening and cutting machine with several steel bar on notch.

BSM-1: Bar straightening and cutting machine is used to straighten and cut the steel bar in a specific length.There are a yellow automatic CNC bar straightening and cutting machine and a red control machine.

BSM-2: Automatic CNC bar straightening and cutting machine is easy to control.A blue scarp steel bar straightener with four moving wheels.

BSM-3: Scarp steel bar straightener can straighten the scarp steel bars to reuse them.A steel bar is in many bar straighten rollers.

BSM-4: Straighten roller is the main tool to straighten the steel bar.

Specification

Material: low carbon steel wire, medium carbon steel wire, high carbon steel bar, stainless steel wire, aluminum wire, alloy, etc.

Wire surface condition: clean round steel bar, ribbed steel bar, galvanized steel bar.

Class of motor: 220V, 380V, 440V, etc.

Specification of Bar Straightening and Cutting Machine

Code Straightening diameter (mm) Cutting length (mm) Cutting error (mm) Straightening speed (m/min) Motor power (kW) Size (mm) Weight (kg)

BSMS-1 1.6-6 50-6000 5-180 13 1400

BSMS-2 1.8-5 50-6000 5-110 5.2 1300

BSMS-3 2-6 50-6000 5-110 7.7 1400

BSMS-4 4-8 ≥2000 ±10 70-80 11 1820 × 650 × 1160 680

BSMS-5 4-10 ≥900 ±5 25-35 4 1760 × 600 × 800 260

BSMS-6 4-10 ≥900 ±5 25-35 5.5 1760 × 600 × 800 280

BSMS-7 4-12 ≥900 ±5 25-35 7.5 1960 × 650 × 930 396

BSMS-8 4-12 ≥900 ±5 35-45 7.5 2000 × 700 × 1100 550

BSMS-9 4-12 ≥900 ±5 35-45 11 2200 × 700 × 1100 750

BSMS-10 4-14 300-7000 ±5 30-54 8860 × 1010 × 1365 1420

BSMS-11 4-14 300-12000 ±3 45 13

BSMS-12 4-14 ≥900 ±5 35-42 16 2800 × 750 × 1160 950

BSMS-13 5-12 ≥900 ±5 35-42 16 1160

Specification of Automatic CNC Hydraulic Rebar Straightening Machine

Code Straightening diameter (mm) Cutting length (mm) Straightening speed (m/min) Size (mm) Weight (kg)

BSMS-14 4-14 800-900 35-42 2380 × 1100 × 550 1200

Specification of Automatic CNC Rebar Straightening and Cutting Machine

Code Straightening diameter (mm) Cutting length (mm) Cutting error (mm) Straightening speed (m/min) Motor power (kW) Weight (kg)

BSMS-15 5-10 900-99000 ±8 35-45 4 210

Specification of Scrap Steel Bar Straightener

Code Straightening diameter (mm) Straightening speed (m/min) Motor power (kW) Size (mm) Weight (kg)

BSMS-16 4-12 28 4 970 × 640 × 1130 320

BSMS-17 5-12 15-20 5.5 1100 × 669 × 500 330

BSMS-18 5-12 20 5.5 265

Specification of CNC Hydraulic Bar Straightening Cutting Machine

Code BSMS-19 BSMS-20 BSMS-21 BSMS-22 BSMS-23

Clean round steel bar diameter (mm) 4-12 4-12 4-12 4-12 4-12

Ribbed steel bar diameter (mm) 4-10 4-10 4-10 4-10 4-10

Cutting length (mm) 800-9000 300-8000 700-8400 300-8400 300-8000

Cutting error (mm) ±2 ±10 ±5 ±10 ±5

Straightening speed (m/min) 45 45 35-45 45 45-50

Straightening motor (kW) 7.5 7.5 5.5 7.5 7.5

Pulling motor (kW) 4 3 3

Cutting motor (kW) 3 or 4 4 4 5.5

Size (mm) 2200 × 650 × 1100 1900 × 840 × 900 2010 × 600 × 1300 2000 × 640 × 1300 2000 × 600 × 1300

Weight (kg) 1300 560 1000 800 700

Feature

Attractive appearance, compact structure, low noise, low vibration, high accuracy, strong durability.

Easy to operate, safe to use, easy to maintenance.

Surface of steel bar does not have indentation, necking.

Convenient, labor-saving, time-saving, high efficiency, environment friendly.

Without training, only one person can operate the machine due to it's high automation.

Cutting length can be adjusted by worker.

It can be used directly when the power on without any debug.

There are four wheels on the bottom of machine to move easily.

Long life time.

Application

Bar straightening machine is used to straighten and cut the coiled rods and bars in building sites, rebar processing factory, rolling mills, cement precast factory, cement factory, steel market, masonry projects, etc.

Country: China (Mainland)
Business Type: Other
Market:Americas
Founded Year:1996
Address:Fuqiang North Road 889, Zaoqiang County, Hengshui City, Hebei Province, China.
Contact:yun fei
