High performance EDM semihard wire
Product Quick Detail
- Terms Of Trade
- FOB,CFR,CIF
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $7.00 / Piece
- Payment Type
- L/C,T/T,Western Union
- Minimum Order
- 200
- Brand Name
- BASHAN
- Packaging
- spool and carton
- Delivery
- 7 Days
Specifications
Product Description
High performance EDM semihard wire
1. Grade: brass
2.Model Number:0.25mm
3. Alloy Or Not:Is Alloy
4.Type: Brass Wire
5. Place of Origin:Henan, China (Mainland)
6.Brand Name:Bashan
Packaging:spool and carton
Productivity:60ton/month
Brand:bashan
Transportation:Ocean,Land,Air
Place of Origin:Henan, China (Mainland)
Supply Ability:2 ton/day
Certificate:ISO9001,TS16949,ISO 14001.
Description
High performance EDM semihard wire
| Product Name | High performance EDM semihard wire |
| composition | Cu60%,Zn40% or Cu63%,Zn37% or Cu65%,Zn35% |
| Wire diameter | 0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm |
| Weight/Spool | 3kg/5kg/7kg/15kg/20kg |
| Tensile strength: | 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2 |
| tolerance | 0.001 |
| Ultimate Strength (≥ MPa) | 980 |
| Packing | Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
| Used | Agie Charmillies, SODICK, Mitsubishi,Makino EDM machine |
Specification
High performance EDM semihard wire
| Condition | Diameter(mm) | Tolerance(mm) | Tensile Strength (N/mm²) | Type of Spool (Standard Weight) |
| | 0.10 | ±0.001 | ≥980 | |
| 0.15 | ±0.001 | ≥980 | ||
| 0.20 | ±0.001 | ≥980 | DIN125(3kg,3.5kg) p5(5kg) DIN160(7kg,8kg) DIN200(15kg,16kg) | |
| 0.25 | ±0.001 | ≥980 | ||
| 0.30 | ±0.001 | ≥980 | ||
| Semi-hard | 0.25 | ±0.001 | | |
| 0.30 | ±0.001 | |||
| Soft | 0.25 | ±0.001 | | |
| 0.30 | ±0.001 |

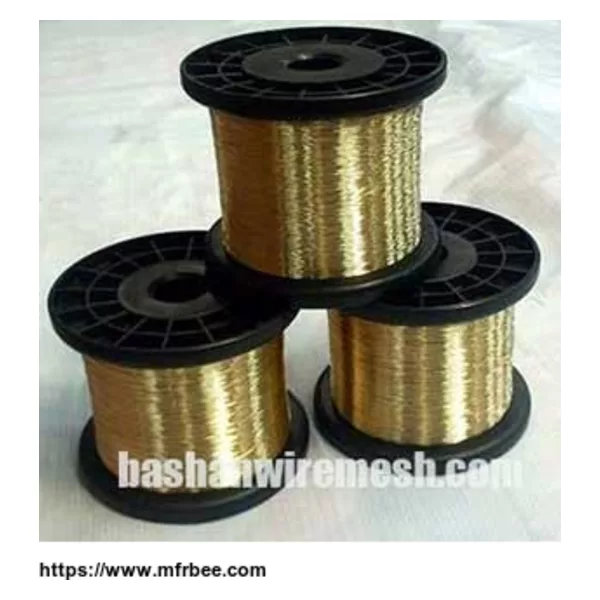

Detailed Images
Features
High performance EDM semihard wire
1.High dimentional accurac
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface
1) Pre-sale service:
Offer you reasonable price of the products you need and answer your other questions.
2) Medium-sales service:
Every filter element you need will be tested strictly before delivery .
3) After-sales service:
Technical advisory for any time.
4) More Service:
1.We can delivery the products by sea ,by air ,or the express,such asDHL ,TNT ,UPS ,SF,EMS and so on .
2.Our customer can pay for by T/T, L/C,Western Union ,or others.
High performance EDM semihard wire
Excellent quality packaging is part of the product, three protection, BS maintains excellent product quality.
1.A heavy paper dust protection: endometrial advantage.
2.Double protection: seal for PVC precision plastic mold.
3.Three protection: professional shockproof corrugated box
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Packing Details
*shrink wrapped+carton+pallet to resist moisture, quake, and corrosion.
Processing & Delivery Time
* Common products in one week.
* Special products according to Contract.
MOQ
* 100 Kilogram/Kilograms
* Payment terms: T/T, L/C , Paypal, West Union etc.
* Trade term: EXW/ FOB/ CIF.
| Material | Type | D1 | D2 | d | W1 | W2 | Spool/box | Spool W (k) | Volum/box |
| ABS | DIN125 | 125 | 80 | 20 | 125 | 100 | 4 | 0.2 | 0.254X0.254X0.127=0.008M3 |
| P3 | 130 | 80 | 20 | 110 | 90 | 4 | 0.2 | 0.264X0.224X0.132=0.008M3 | |
| P5 | 160 | 90 | 20 | 114 | 90 | 4 | 0.33 | 0.324X0.232X0.18=0.014M3 | |
| DIN160 | 160 | 100 | 22 | 160 | 128 | 2 | 0.35 | 0.324X0.162X0.18=0.009M3 | |
| DIN200 | 200 | 125 | 22 | 200 | 160 | 1 | 0.66 | 0.22X0.22X0.22=0.01M3 |
