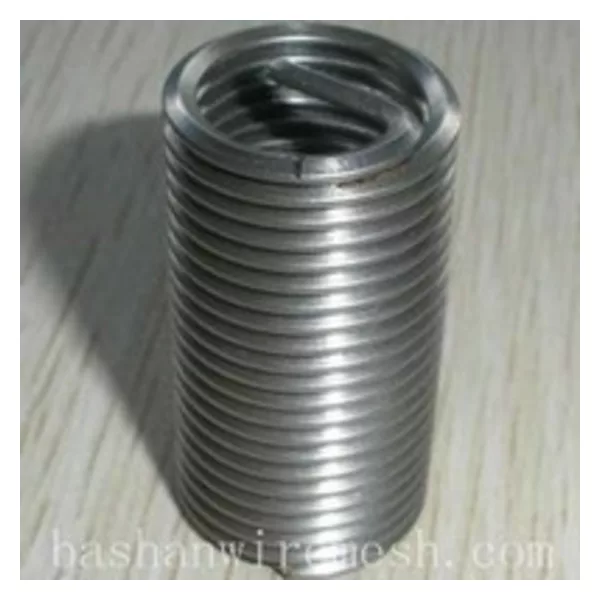

High performance M3 * 0.5wire thread insert
Product Quick Detail
- Place Of Origin
- henan,China
- Minimum Order
- 300
- Packaging
- inner pack: plastice bag, outer pack: carton
- Delivery
- 7-15 Days
Specifications
| The parameter and style of Hot Sale Screw Thread Coils Thread Inserts. | |||||||
| METRIC PARAMETER | |||||||
| d | p | xd | l | w | Dz | do | |
| 2 | 0.4 | 1d | 2 | 2.9 | min | max | 2.1 |
| 1.5d | 3 | 4.9 | 2.6 | 2.8 | |||
| 2d | 4 | 6.9 | |||||
| 2.5d | 5 | 8.9 | |||||
| 3d | 6 | 10.9 | |||||
| 2.5 | 0.45 | 1d | 2.5 | 3.5 | 3.3 | 3.5 | 2.6 |
| 1.5d | 3.75 | 5.9 | |||||
| 2d | 5 | 8.1 | |||||
| 2.5d | 6.25 | 10.5 | |||||
| 3d | 7.5 | 12.9 | |||||
| | | | | | | | |
| Because the space is limited , We Only listed a few specifications of wire thread inserts . if you want to learn more,Welcome to contact me any time | |||||||
The specifications of High performance M3 * 0.5wire thread insert
| Size | M3*0.5 |
| Length | 1D=3mm, 1.5D=4.5mm, 2D=6mm,2.5D=7.5mm,3D=9mm |
| circle | 3.9k,6.3k,8.7k,11k,13.5k |
| type | free-running insert |
| material | stainless 304 |
| color | original/red/black/ |
| coating | plates the titanium/cadmium/galvanization |
| standard | MERTRIC/UNC/UNF/ |
| drill diameter | 3.1mm |
| install tool size | M3*0.5 |
| unload tool size | M3*0.5 |
| break tool size | M3*0.5 |
Having more than 50 years of experiences in this field, and with background of military technology.
1.Increase the bearing capacity of the threaded connection and fatigue strength
2.Good.abrasion Resistance
3.Corrosion resistance
4.High precision
5.High temperature resistance
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
