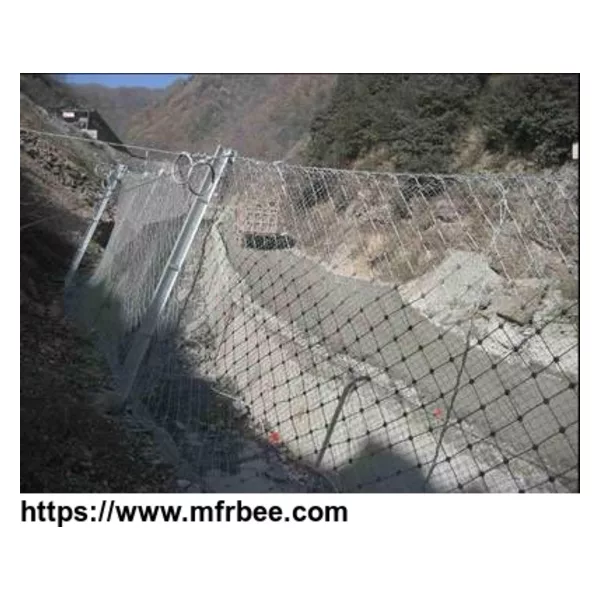

Passive Rockfall Barrier System
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Passive Rockfall Barrier System - Steel Ring Net and Steel Wire Rope Net
Passive rockfall barrier system is installed bottom of the mountain or slope to reduce and block the rockfalls and stones. When the stones, rocks, snows are falling down the mountain or slopes, the passive rockfall barrier system can reduce the impact of the rockfalls and protect the people and properties' safety.
Main types of passive rockfall barrier systems are including steel wire rope net and steel ring net.
- Steel wire rope net steel wire rope net can not only used for active rockfall barrier system, but also the passive rockfall barrier system. It is mainly composed of steel wire rope net, decompression rings, supporting rope, sewing rope and steel column. It has high tensile strength and can block the rockfalls within 750 kJ.
- Steel wire ring net Steel ring net is made of high quality hot dipped galvanized wire into circles. Different circle quantity have different block capacity. The steel ring net can block the rockfalls within 2000 kJ. Steel ring net system is commonly made of steel ring net, supporting rope, anchor rope, sewing rope and metal column.
PRB-01: Steel ring net system.

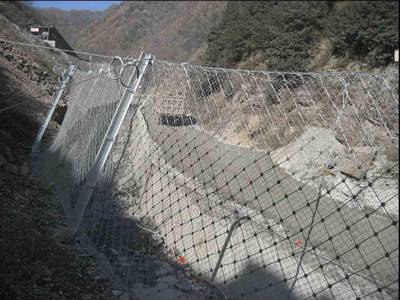

PRB-02: Steel wire rope net.
| Model | Net size | Supporting rope | Upper anchor rope | Anchor rope | Sewing rope | Loading capacity |
|---|---|---|---|---|---|---|
| RX-025 | Wire rope net: Wire diameter: 8 mm. Mesh size: 250 mm × 250 mm. | 12 mm double steel wire rope. Each spacer has 3 decompression rings | 16 mm single steel wire rope. 1 decompression ring | 12 mm single steel wire rope | 8 mm | ≤ 250 kJ |
| RX-050 | Wire rope net: Wire diameter: 8 mm. Mesh size: 200 mm × 200 mm. | 16 mm double steel wire rope. Each spacer has 6 decompression rings | 14 mm single steel wire rope. 1 decompression ring | 16 mm single steel wire rope | 8 mm | ≤ 500 kJ |
| RX-075 | Wire rope net: Wire diameter: 8 mm. Mesh size: 150 mm × 150 mm. | 18 mm double steel wire rope. Each spacer has 10 decompression rings | 18 mm single steel wire rope. 2 decompression ring | 18 mm single steel wire rope | 8 mm | ≤ 750 kJ |
| RXI-025 | Steel ring net: Circle quantity: 5. Wire diameter: 3 mm. Circle diameter: 300 mm. | 18 mm single steel wire rope | 16 mm single steel wire rope | 16 mm single steel wire rope | 8 mm | ≤ 250 kJ |
| RXI-050 | Steel ring net: Circle quantity: 7. Wire diameter: 3 mm. Circle diameter: 300 mm. | 22 mm single steel wire rope | 18 mm single steel wire rope | 18 mm single steel wire rope | 8 mm | ≤ 500 kJ |
| RXI-075 | Steel ring net: Circle quantity: 5. Wire diameter: 3 mm. Circle diameter: 300 mm. | 16 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring. | 14 mm single steel wire rope. 1 decompression ring | 14 mm single steel wire rope | 8 mm | ≤ 750 kJ |
| RXI-100 | Steel ring net: Circle quantity: 9. Wire diameter: 3 mm. Circle diameter: 300 mm. | 18 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring. | 16 mm single steel wire rope. 1 decompression ring | 16 mm single steel wire rope | 12 mm | ≤ 1000 kJ |
| RXI-150 | Steel ring net: Circle quantity: 12. Wire diameter: 3 mm. Circle diameter: 300 mm. | 22 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring. | 18 mm single steel wire rope. 1 decompression ring | 18 mm single steel wire rope | 12 mm | ≤ 1500 kJ |
| RXI-200 | Steel ring net: Circle quantity: 19. Wire diameter: 3 mm. Circle diameter: 300 mm. | 18 mm double steel wire rope. Each spacer and each metal column has 1/2 decompression rings. Total is 8 decompression ring. | 18 mm single steel wire rope. 1 decompression ring | 18 mm single steel wire rope | 14 mm | ≤ 2000 kJ |
Features of passive rockfall barrier system
- High loading capacity.
- High flexibility.
- Uniform distribution of the power.
- Excellent buffering performance.
- Corrosion and rust resistance.
- Durable and long service life.
- Different types for choice.
