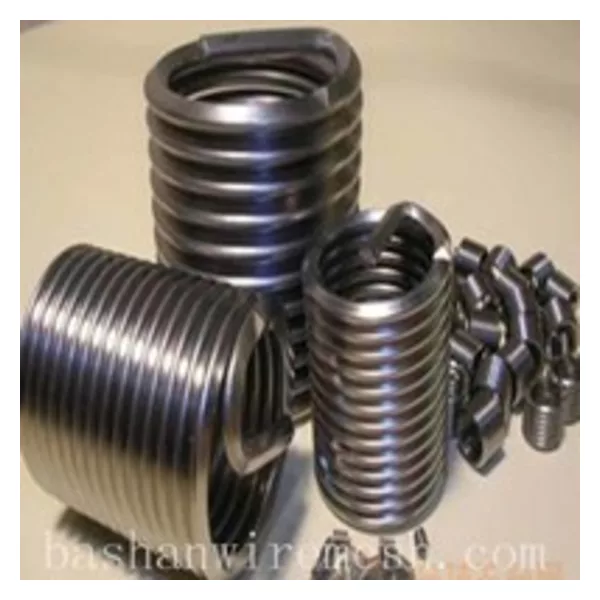

Durable UNC Wire thread inserts
Product Quick Detail
- Place Of Origin
- henan,China
- Color
- red, green,purple,original
- Service
- OEM
- Type
- free-running insert
- Coating
- plates the titanium/cadmium
- Brand Name
- BASHAN
- Minimum Order
- 300
- Model Number
- M2-56
- Certificates
- ISO9001:2008
- Standard
- JIS ASTM AISI DIN EN GB
- Length
- 1d=2.2mm,1.5d=3.3mm,
- Material
- stainless steel
- Packaging
- inner pack: plastice bag, outer pack: carton
- Delivery
- 7-15 Days
Specifications
The description of Durable UNC Wire thread inserts.
| d | p | xd | L1 | w | Dz | do | |
| | | 1d | 2.2 | 3.0 | min | max | 2.4 |
| 1.5d | 3.3 | 5.25 | 2.7 | 2.9 | |||
| 2d | 4.4 | 7.4 | |||||
| 2.5d | 5.5 | 9.6 | |||||
The specifications of Durable UNC Wire thread inserts.
| Size | M2-56 |
| Length | 1d=2.2mm,1.5d=3.3mm,2d=4.4mm,2.5d=5.5mm |
| circle | 3.9k,6.3k,8.7k,11k,13.5k |
| type | free-running insert |
| material | stainless steel |
| color | original/red/black/ |
| coating | plates the titanium/cadmium/galvanization |
| standard | MERTRIC/UNC/UNF/ |
| drill diameter | 2.4 |
Having more than 62 years of experiences in this field, and with background of military technology.
1.Increase the bearing capacity of the threaded connection and fatigue strength
2.Good.abrasion Resistance
3.Corrosion resistance
4.High precision
5.High temperature resistance
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
