OPGW Codnuctor

Minimum Order: 1

Packaging: N/A

Delivery: N/A

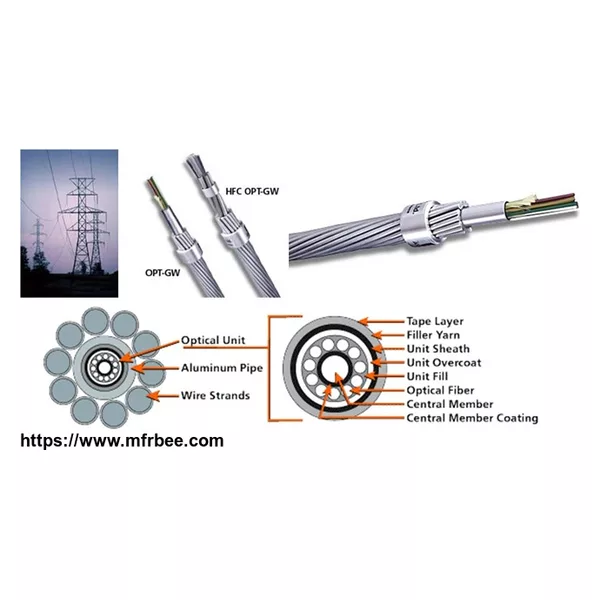

OPGW is primarily used by the electric utility industry, placed in the secure topmost position of the transmission line where it “shields” the all-important conductors from lightning while providing a telecommunications path for internal as well as third party communications. Optical Ground Wire is a dual functioning cable, meaning it serves two purposes. It is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes. OPGW must be capable of withstanding the mechanical stresses applied to overhead cables by environmental factors such as wind and ice. OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground without damaging the sensitive optical fibers inside the cable.

Country: China (Mainland)
Business Type:
Market:Middle East, Africa
Founded Year:2005
Address:C508 Room,Virgo Building,Wuchang Xixi Software Park,Hangzhou,CHINA
Contact:Moyi Zhu

*Your name:	Enter name here eg:Ralph zhang
*Your Email:	Enter email here
*To:	HANGZHOU EASY ELECTRIC SUPPLY CABLE LIMITED
*Subject:
*Message:
	Enter between 20 to 3,000 characters. English only. Characters : 0 / 3000
*Enter the secure code shown below	Reload Image

		We do inquire for you , please wait ...

0.6/1kv XLPE Aluminum Cable

ABC Overhead Cable: Quadruplex

ABC Overhead Cable: Triplex

ABC Overhead Cable: Duplex

ABC Overhead Cable:Single ABC

OPGW&ADSS Suspension Assembly

Component Inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc. Characteristic 1. Stress is distributed equally, without stress focus. It can improve the intensity of cable line installation ...

Hebei Glame Import and Export Trade Co.,Ltd.

ADSS & OPGW Dead End Grip

Short Span dead end grip for ADSS(ADN) Component Single layer glue thread, thimble, extension loop, U-shaped hanging loop, bolt, nut etc. Characteristic Simple structures, easy installation, and to lower the costs of the project. Conditions For The Usage Optical cable projects ...

Hebei Glame Import and Export Trade Co.,Ltd.

ADSS&OPGW Tension Set

Dead end grip for ADSS(ANZ) Component Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extension loop, bolt, nut, etc. Characteristic 1. Stress is distributed equally, without stress focus. It can protect optical cables very well. 2. Under the condition of ...

Hebei Glame Import and Export Trade Co.,Ltd.

ADSS & OPGW Preformed Strain Clamp

Dead end grip for OPGW Component Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, Extensioe Rods, bolt, nut, etc. Characteristic 1. Stress is distributed equally, without stress focus. It can protect optical cabl-es very well. 2. Under the condition of not ...

Hebei Glame Import and Export Trade Co.,Ltd.

Dead-End Clamp For ADSS/OPGW

Component ly@preformedfittings.com Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extension loop, bolt, nut, etc. Characteristic 1. Stress is distributed equally, without stress focus. It can protect optical cabl-es very well. 2. Under the condition of not ...

Shijiazhuang Paerpu Import&Export Trading Co.,Ltd.

Typical Designs of Stranded Stainless Steel Tube OPGW

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s) OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9 OPGW-110[90.0;86.9] 24 14 600 90 86.9 OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6 OPGW-127[79.0;129.5] 36 15 537 79 129.5 OPGW-137[85.0;148.5] 36 15.6 575 ...

Hunan Guanglian Photoeletricity Technologies Co.,

Typical Designs of Central Stainless Steel Tube OPGW

Specification Fiber Count Diameter （mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s) OPGW-32(40.6;4.7) 12 7.8 243 40.6 4.7 OPGW-42(54.0;8.4) 24 9 313 54 8.4 OPGW-42(43.5;10.6) 24 9 284 43.5 10.6 OPGW-54(55.9;17.5) 36 10.2 394 67.8 13.9 OPGW-61(73.7;175) 48 10.8 438 73.7 17.5 ...

Hunan Guanglian Photoeletricity Technologies Co.,

High voltage 48 core G652d power fiber cable OPGW

1.Engineering support supervising and providing its own line of accessories hardware . 2.To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv; 3.Apply to the transformation of old lines. ...

GL company

PBT Loose Tube Optical Ground Wire (OPGW Cable)

Good anti corrosion performance,short circuit current has small effect on the optical fiber transmission properrities.good anti lightning performance. Ťhe aluminum tube is surroundes by single or double layers of aluminum clad steel wires or mix ACS wires and aluminum alloy ...

Hunan Guanglian Photoeletricity Technologies Co.,
