24channel power distribution

Minimum Order
1
Place Of Origin
China (Mainland)
Packaging
flight case
Delivery
15 Days

Description

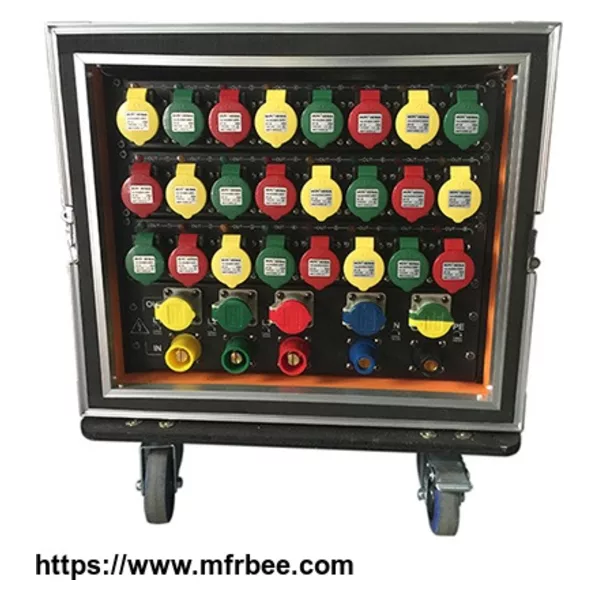

KoinStage customized Three-phase five wire24channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels for mechanical protection.24 channels has separately by24 pcs 16A 3pin socket , it can protect the power case very good.400Acamlock input, there are
yellow/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.

Specification

Flight Case 13U,5inch wheel,fireproofing,quakeproof,LED lighting at the top inside
Input 400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput
Output 24 channels16A 3pin socket
Breaker main breaker, air switch (Delixi)
Meter ampere and voltage meter
Wire copper busbar main wire, inflaming retarding,terminal fixed with Screw glue
Plug with 400A camlock plug,16A 3pin plugs
Working Temperature 0℃-45℃
relative humidity +40% - +80%
Atmospheric pressure 0.8-1.6
Working environment well-ventilated, non smoke dust
Weight 40Kg
