Bluetooth iCar 2 OBD2 Scanner iCar2 ELM327 Scan Tool

Bluetooth iCar 2 OBD2 Scanner Supports all OBDII protocols. iCar2 ELM327 Scan Tool is bluetooth version. Bluetooth iCar 2 scanner is powerful OBD2 Scan tool.

---

Bluetooth iCar 2 OBD2 Scanner iCar2 ELM327 Scan Tool
Notice:(This Item is Bluetooth iCar 2 OBD2 Scanner)

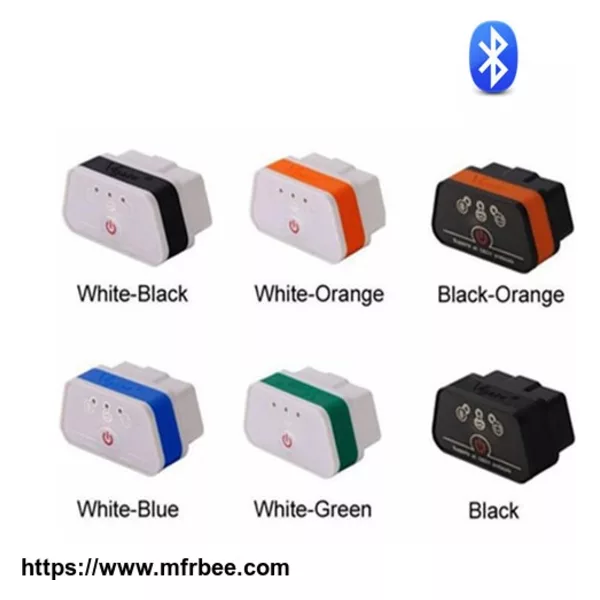

Vgate iCar 2 Bluetooth Color: (6 colors for your choice)
Black+White/Orange+White/Black+White/Blue+White/Green+Orange/Black
For the iCar2 (Bluetooth version)you can download the TORQUE from ANDROID which will be charged fee. Reference the graphic of the folder then can help you easily to operate this software
iCar 2 Feature:
Small size, compact structure. Plug and never unplug
Stable wireless connection
No wires or batteries (adapter is powered by the diagnosis size sockets)
Stop communication, wait half an hour, auto sleep
Supports all OBDII protocols
The adapter uses the fastest and most reliable ARM chips
iCar 2 is a small OBD2 Scanner adapter that plugged into the OBD-ii 16pin connector of vehicle. Based on WiFi or bluetooth , it connects to any computer, tablet or smart phone, With associated diagnostic procedures . Doing these simple operations, you will be able:
Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
Measure the fuel consumption.
Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
Turn off the MIL (signal Check Engine).
Download data to external media in a variety of formats for later printing.
Record various parameters, display graphics in real time, and more.
Using iCar 2 OBD2 Scanner you will be able to perform Car diagnostic tools based on laptop or PC, and even to correct minor faults without resorting to service stations.
ICar2 supports all OBD-II protocols:
0. Automatic Car scan
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
iCar2 support function:
1. Works with all OBD-II compliant vehicles
2. Wireless (Bluetooth) 5~10 meter
3. iCar(Bluetooth version) support for software applications: for Palm, PDA, Mobile(Andrews, java, blackberry etc)
Package List:
10pc x Vgate iCar2 (Bluetooth Version)
