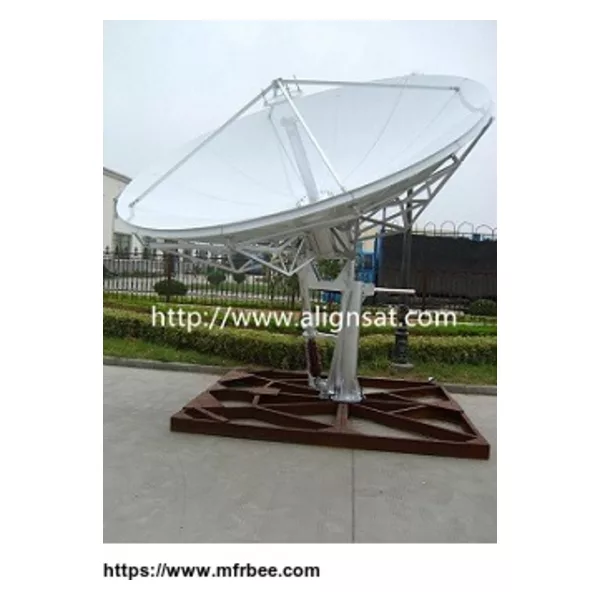

Alignsat 3.7m Earth Station Antenna

FOB Price
USD $4,800.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
60 Days
Electrical Specifications
Type AT37C AT37K
Operating Frequency, GHz C band Ku band
Receive Transmit Receive Transmit
3.625~4.2 5.85~6.425 10.95~12.75 13.75~14.5
Gain, Mid-band, dBi 41.7 45.6 51.4 52.7
Polarization Linear /circular Linear
XPD(on Axis), dB 35 35 35 35
XPD across 1dB Beam Width, dB 33 33 33 33
Axial Ratio/2-PortFeed

(Circular-Polarized)

1.30 1.09



VSWR 1.25 1.25 1.25 1.25
Antenna Noise Temperature 2-port feed

10° Elevation

30° Elevation

50° Elevation

35°K

29°K

25°K



49°K

39°K

35°K



G/T ( El>10°) 24dB/°K

( 30°LNA )



30.6dB/°K

( 70°LNA )



-3 dB Beam Width, Mid-band 1.25° 0.82° 0.44° 0.38°
Tx. Power Capability, KW

5

2
Feed Interface CPR—229G CPR—137G WR-75 WR-75
Feed Insertion Loss, dB 0.2 0.2 0.25 0.2
Isolation, Tx to Rx, dB 90 85
First Side lobe 90% Peaks under Following Envelop -14

29-25logθ(1°≤θ<20°)

-14

29-25logθ(1°≤θ<20°)

Mechanical Specification
Antenna Diameter 3.7m
Antenna Type Ring Focus
Surface Accuracy(RMS) ≤0.5mm
Antenna Pointing Range Azimuth 0°~180°
Elevation 0°~90°
Polarization ±360°
Drive Mode Manual or Motorized
Motor Drive System Azimuth Travel Rate 0.11°/S(0.03°/S)
Elevation Travel Rate 0.17°/S(0.04°/S)
Antenna reflector Material Aluminum Alloy
Finish of steel parts Hot dipped Zinc
Environmental Specification
Operational Wind 72km/h gusting to 97km/h
Survival Wind 216km/h
Temperature -40°~+60°
Relative Humidity 100%
Solar Radiation 1135Kcal/h/m²
Seismic(Survival) 0.3g(H), 0.15g(V)
Ice Loading 13mm Operational; 25mm Survival





Note:

1. The real price depends on the detailed parameter you request.

2. When you send us the inquiry, please describe your detailed request, such as exact frequency band for C, ku, ka, X, S or other bands, Linear or Circular Pol., 2 or 4 port, manual or motorized drive. With these detailed information, we can offer you an accurate quotation at an early time. Thanks for your cooperation and understanding.
