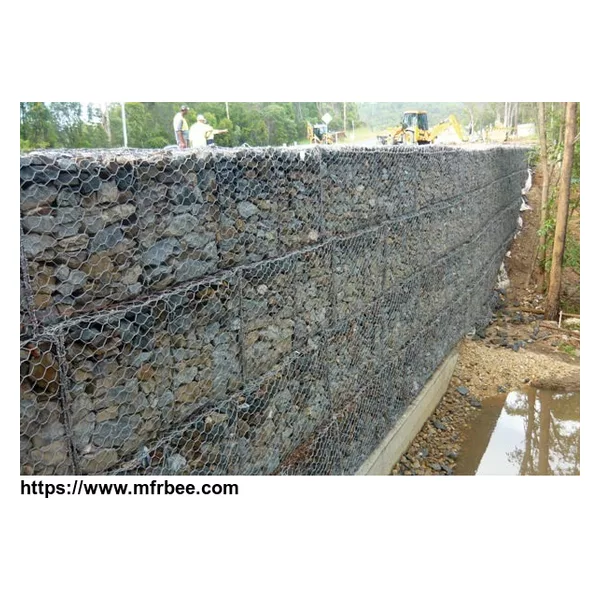

Gabion boxes are made of triple twist hexagonal woven mesh fabric. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with
natural stone and also proven as environmentally friendly.
Hole (mm) | Mesh wire(mm) | Side wire(mm) | Binding wire(mm) | Max width |
60X80 | 2.0~2.8 | 3.0~4.0 | 2.0~2.2 | 4M |
80X100 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
80X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
100X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
100X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
120X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 |
Length :±/-3% Width :±/-5% Height :±/-5% |
3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
2.0 | 1.0 | 0.5 | 1 | 1.0 | |
3.0 | 1.0 | 0.5 | 2 | 1.5 | |
4.0 | 1.0 | 0.5 | 3 | 2.0 | |
1.0 | 1.0 | 1.0 | 0 | 1.0 | |
1.5 | 1.0 | 1.0 | 0 | 1.5 | |
2.0 | 1.0 | 1.0 | 1 | 2.0 | |
3.0 | 1.0 | 1.0 | 2 | 3.0 | |
4.0 | 1.0 | 1.0 | 3 | 4.0 |
