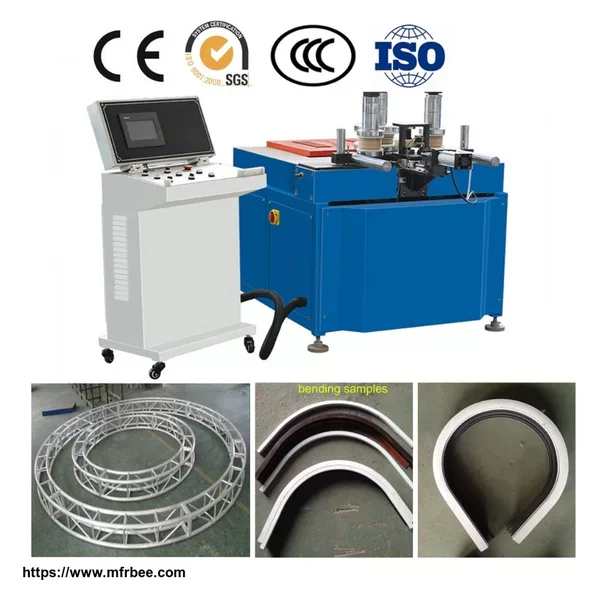

CNC aluminum window door profile arc bending machine
Product Quick Detail
- Minimum Order
- 1
- FOB Price
- USD $15,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Packaging
- professional plywood case
- Delivery
- 15 Days
Specifications
Main features
1. It is a good machine for the bending of building rebar. The machine is mainly used for bending for metal materials such as iron, copper, and aluminum and special-shaped material. It is a good machine for furniture manufacturers, wrought iron engineering manufactures, aluminum doors and windows manufacturers, decorative steel structure enterprise.
2. It adopts non-contact switch sensor and embedded microcomputer control, which solves the problem of the traditional bending machine’s big bending error.
3. The machine adopts CNC controller, which makes the machine features easy handling and high precision.
4. Using CNC software makes the bending operation very simple.
5. Can bend many shapes such as C shape, U shape, S shape, circle and spring.
6. Capable of detecting material rebound data, eliminate rebound.
7. Adopts more convenient operating system and thus improve working efficiency.
8. Low energy consumption.
Technical Parameter
| Input power | 10.5KW |
| Input voltage | 380V 50HZ |
| Air pressure | 0.4-0.8Mpa |
| Min bending diameter | 230mm |
| Max roller die diameter | 200mm |
| Rotation Speed of Shaft | 1-8r/min |
| Roller diameter | 40mm |
| Max width of profile | 200mm |
| Fixing roller centre distance | 330-750mm |
| Positioning precision | 0.02mm |
| Oil pressure | 20T(200Mpa) |
| Upper roller stroke | 280mm |
| Machine dimension | 1200x1100x1100mm |
| Weight | 1000KGS |
We sincerely hope to cooperate with clients from all over the world.
