Large size screen printing exposure unit

Minimum Order
1
Place Of Origin
China
Packaging
1pcs in wooden box
Delivery
15 Days

Application Scope:

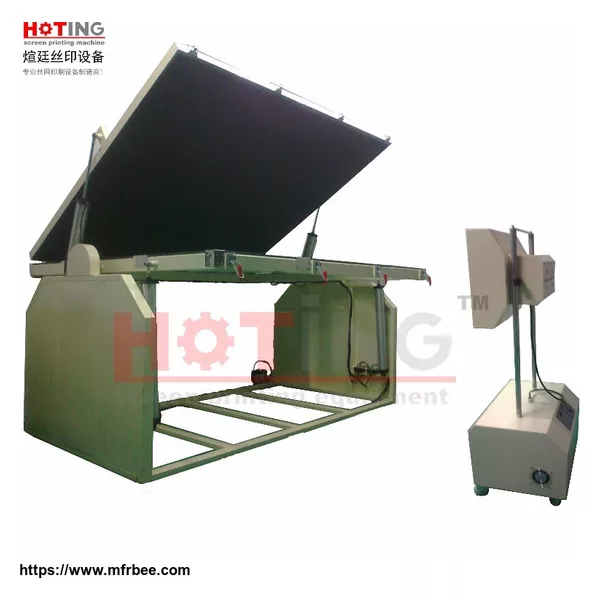

The large size free standing exposure system consists of the exposing lamp and the independent vacuum copying frame. High actinic light, even light distribution, constant power control, stable wavelength, high vacuum force and long service life of the lamp are the key features for preparing the high quality stencils for half tone jobs and highly dense line stencils.



Exposing lights (EV-LP3000)

The reflector angle is computer-aid designed for the best light distribution. The reflector panel is the high quality material imported from Germany.

The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.

The exposing time is controlled with timer.



Vacuum copying frame (EV-3618)

Motor- driven flip over mechanism, the turning from loading position to the vertical position for exposing is being .



Parameters:

Model EV-3618
Max frame size 3600×1800mm
Exposure lamp 380V 50Hz 5KW
Exposure machine power 380V 50Hz 5.5KW
Weight Approx. 800kg
Dimension(L X W X H) 4400×2260×2500mm
★ Customized frame size can be made for requirement.
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Americas,Asia,Emerging Markets
  • Founded Year:2010
  • Address:No. 20-1, Siyuan Road, Yexie Town, Songjiang District
  • Contact:Andrew Zhao
