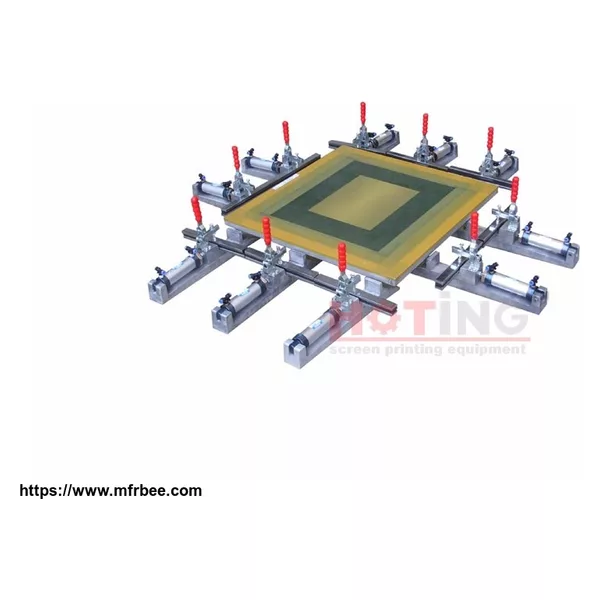

Pneumatic screen fabric stretching machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 5 Days
Specifications
Application:
This machine is a special equipment in screen printing industry. Pneumatic elements and movable clamps applied to adjust various screen stretching dimensions, featured for level
screen surface, evenly tension, high efficiency.
Specification:
·Simple and easy to use
·Offers high-tension stretching
·Rubber grippers are gentle on mesh
·Independently control tension in all directions
·Maximum air pressure 0.7mpa
Parameters:
| Model | TPM-300 | |
| Max frame size | 600 X 900mm |
|
| Clamp width | 300mm |
|
| Clamp quantity | 10 units |
|
| Each weight | 4Kg |
|
| Cylinder stroke | 75 mm |
|
| Spare parts | Pressure regulator, plastic pipe and valve |
|
|
|
|
