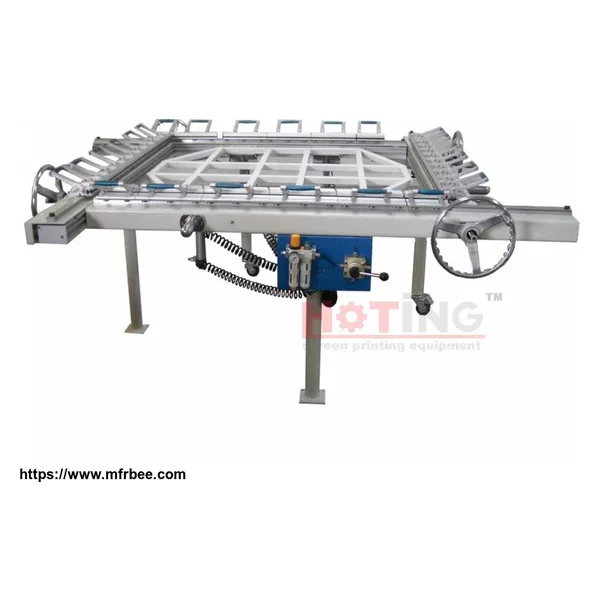

Mechanical screen stretching machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 15 Days
Specifications
Application:
This series suitable for stretching various size screen, and can stretch several small size screen simultaneously.
Specification:
Improved type aluminum clamps with quality rubber, artistic and lasting
Tension Error margin is 0.6N/cm2
Imported air cylinder
Mesh stretching size can be arbitrary adjusted
Quality is dependable and design is handsome
Each part has its special features; the frame is light and firm
Strong clamping force is the main reason to decide the quality of net stretching and our product is right beyond all other products at this point.
Parameter:
| Model | TMS-1618 | TMS-1818 |
| Out size | 1600mmÃ1800mm | 1800Ã1800mm |
| Max frame size (OD) | 1250Ã1500mm | 1500Ã1500mm |
| Min frame size (OD) | 400Ã500mm | 500Ã500mm |
| Working pressure | 0.4~0.7Mpa | 0.4~0.7Mpa |
| Max tension | 30N | 30N |
| â Special specification can be made for customized size. |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Asia,Emerging Markets
- Founded Year:2010
- Address:No. 20-1, Siyuan Road, Yexie Town, Songjiang District
- Contact:Andrew Zhao
