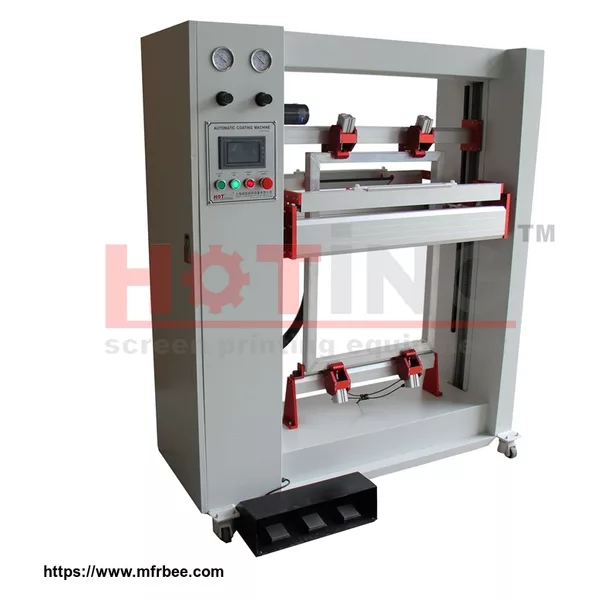

CD screen automatic emulsion coating machine

Application:

The series is suitable for screen printing screen high-precision photographic emulsion coating.

Features:

(1) PLC programmable controller and HMI composition as the operating control system.

(2) Full automatic operation via touch-screen settings, ordinary plate-maker can be easy to produce high-quality precision screen.

(3) Fixing clamps / Unlock clamps set by a foot switch which controls the air pressure, easy to load and unload screen.

(4) Coating speed, coating time and a single, double-sided coating can be freely set.

(5) With pressure regulating function, the coating thickness can be controlled via a set number of application times and applying pressure.

(6) While reaching stop position would automatically slow down to 20mm near the frame, no need to fix screen extra edges.

(7) Use of rail steel with special low vibration, ripple-free coating process.

(8) Operating system with multi languages, multiple coating patterns, and detailed parameter settings.

(9) Special corrosion-resistant treatment aluminum scoop coater, with no clearance with the coating structure, maintain stable emulsion coating.

Parameters:

Model	CAD-6060
Max frame size	600 X 600mm
Min frame size	185 X 245mm
Max coating area	500 X 500mm
Min coating area	100 X 150mm
The longest coater length	500 mm
The shortest coater length	100 mm
Coating thickness	15 – 55 mm
Coating precision	±0.001 mm
Coating speed	Front and back side 0 - 9999 times
Coating time setting	Four process time free set
Coating pressure	2 - 6kg/cm2 adjustable
Coating speed	5 - 150mm/sec
Operation system	HMI + PLC
Frame fixing	Foot switch quick fixed
Air pressure	6kg/cm2
Weight	Approx. 260kg
Power	220V X 1ph X 450W
Dimension (W X D X H)	1336 x 500 x 1645 mm
