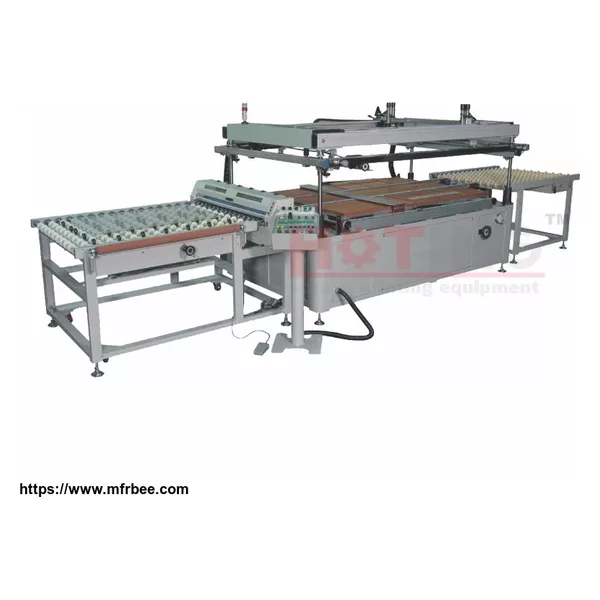

Automatic glass screen printing machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 30 Days
Specifications
This series is suitable for automotive glass, decorative glass, furniture glass, engineering and construction glass etc printing.
Specification:
1. Feeding, positioning, accurate positioning, printing, unloading process all automatic work; Easy operation, quality assurance
2. Use the synchronous antiskid elevating conveyor, smooth transmission, low noise, long life
3. Convenient adjustment and maintenance
4. Secondary to repeat positioning, using the plate line and multipoint positioning method, to ensure that the various shapes of glass registration precision
5. Balanced pressure, automatic recharge portable adjustment printing blowing system, ensure uniform fine printing
6. Printing transmission adopts imported linear guide rail and a synchronous toothed belt, running smooth, stepless speed regulation
7. PLC electrical control system
8. Equipped with automatic alarm device and the perimeter security protection switch, and can choose a pneumatic mechanical safety protection devices, to ensure safety
in production
| Model | PGA-1016 | PGA-1224 |
| Max printing size | 1600 X 1000mm | 2400 X 1200mm |
| Min printing size | 600 X 600mm | 600 X 600mm |
| Printing table size | 2100 X 1400mm | 2900 X 1600mm |
| Printing speed | 210pcs/hour | 180pcs/hour |
| Max frame size | 1500 X 2200mm | 1700 X 3000mm |
| Printing pressure | 0 ~ 60kgf | 0 ~ 60kgf |
| Scraper angle | 60° ~ 90° | 60° ~ 90° |
| Scraper Bias | 6° | 6° |
| Frame fixing | Vacuum cylinder clamps | |
| Air pressure | 6kgf/cm2 | 6kgf/cm2 |
| Weight | 1600kg | 1800kg |
| Dimension | 2950 X 2100 X 1800mm | 3650 X 2200 X 1800mm |
| â Special specification can be made for customized size |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Asia,Emerging Markets
- Founded Year:2010
- Address:No. 20-1, Siyuan Road, Yexie Town, Songjiang District
- Contact:Andrew Zhao
